BiMTOOLS

SOFiSTiK BiMTOOLS are a set of free tools for Autodesk® Revit® which enhances the productivity for elaborations of views up to 50%.

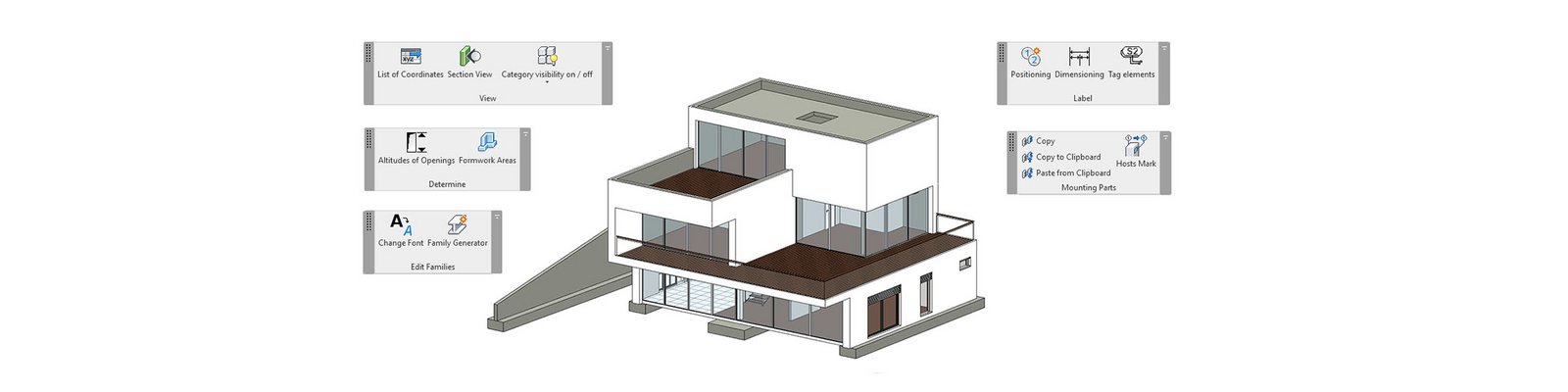

Functionalities at a glance

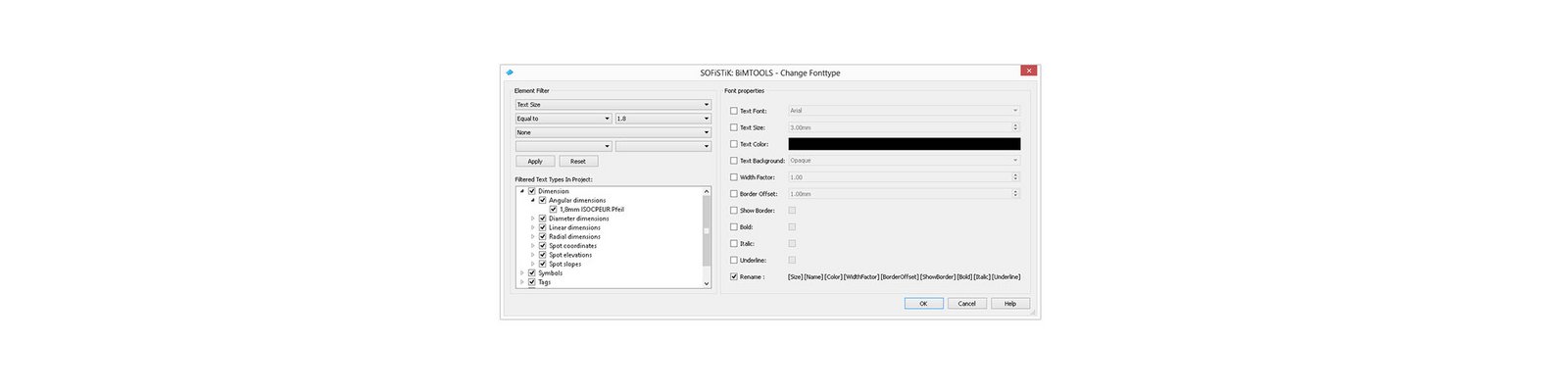

  • Substitution of Font Type
  • Read out of Coordinates
  • Create Views of Elements
  • Positioning of Elements



  • Automatic Dimensioning

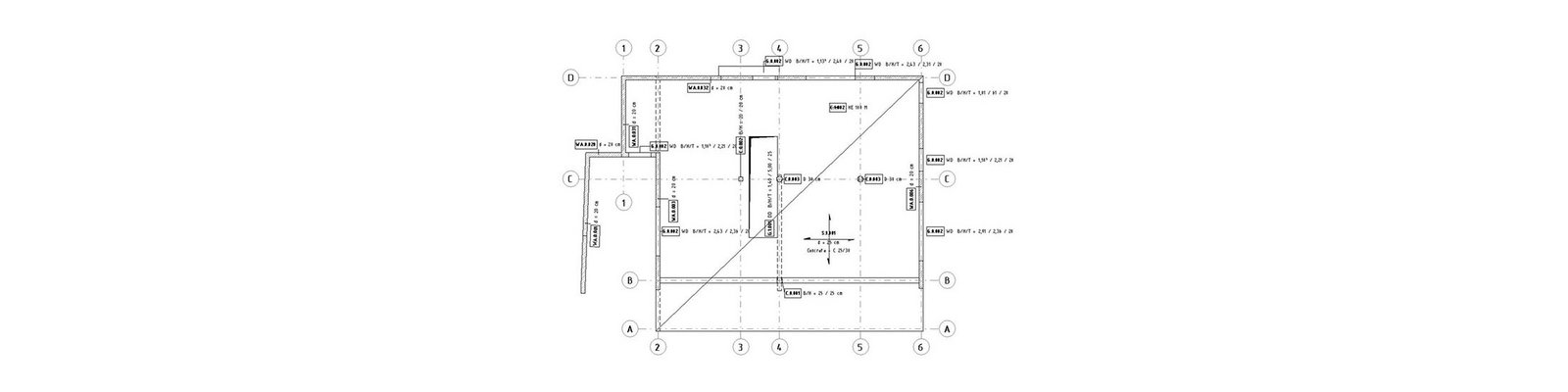

  • Selective tagging
  • Hiding of categories not to be plotted

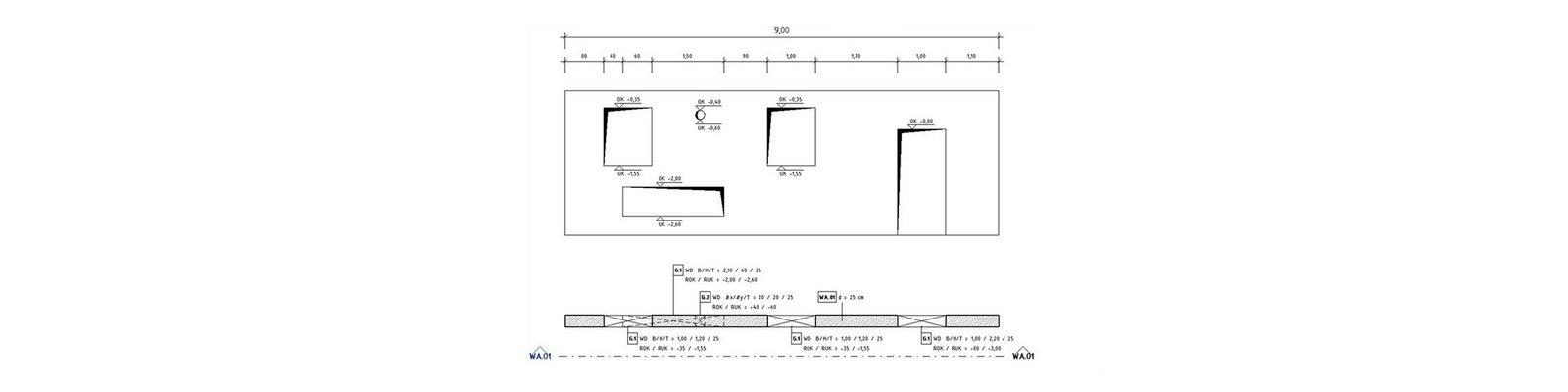

  • Altitude of Openings

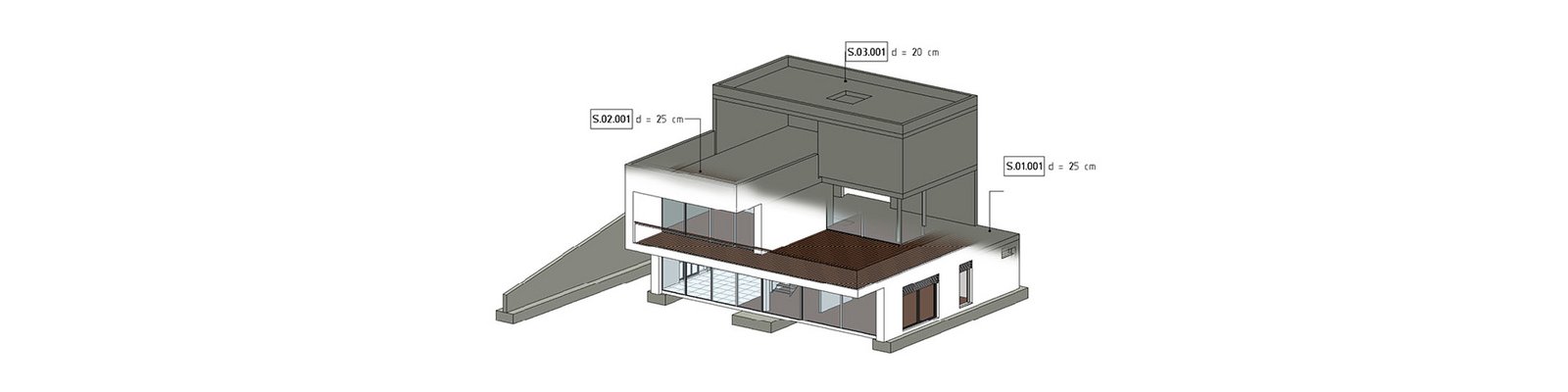

  • Formwork area

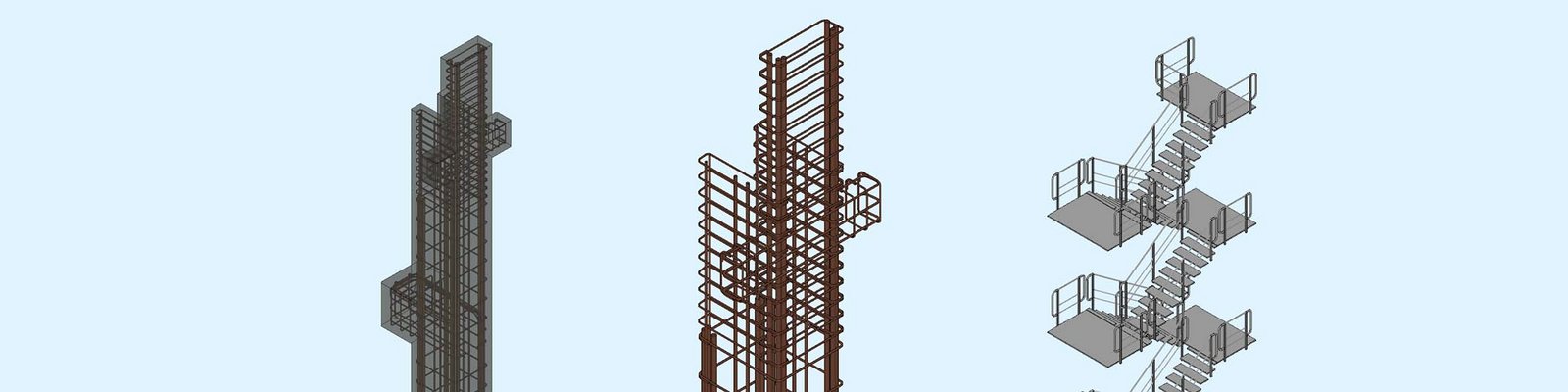

  • Copy mounting parts
  • Assign the mark of the host
  • Creation of 3D PDFs



3D-PDF Export

SOFiSTiK 3D-PDF Export extends the functionalities of Autodesk® Revit® through the generation of standard PDF documents with embedded 3D graphics. The 3D-PDF files can be opened by any PDF reader that supports the PDF 1.6 standard, such as Adobe Reader 7.0 or later. SOFiSTiK 3D-PDF Export uses the geometric definition of the elements in order to create an equivalent representation of the model in U3D format. Descriptive information about the particular Revit objects is embedded.

Resources and current topics



Documentation



Here you will find helpful information about the product and the release notes.



Documentation
